NORMAL SIZE

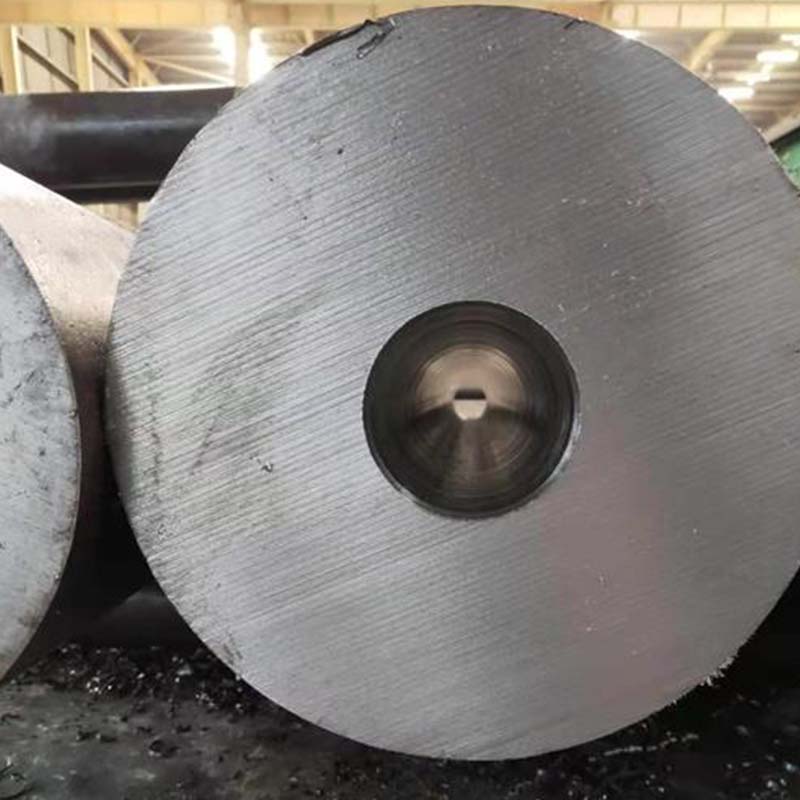

（Special Sizes Made from Hollow Bar)
| Normal pipe size | OD | Normal wall thickness | |||||||||||||
| DN | inch | ASME | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 | XXS |
| 15 | 1/2 | 21.30 | 2.11 | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 | |||||
| 20 | 3/4 | 26.70 | 2.11 | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 | |||||
| 25 | 1 | 33.40 | 2.77 | 2.90 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 | |||||
| 32 | 1 1/4 | 42.20 | 2.77 | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | 9.70 | |||||
| 40 | 1 1/2 | 48.30 | 2.77 | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | 10.15 | |||||
| 50 | 2 | 60.30 | 2.77 | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | 11.07 | |||||
| 65 | 2 1/2 | 73.00 | 3.05 | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | 14.02 | |||||
| 80 | 3 | 88.90 | 3.05 | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | 15.25 | |||||
| 90 | 3 1/2 | 101.60 | 3.05 | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | |||||||
| 100 | 4 | 114.30 | 3.05 | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||||
| 125 | 5 | 141.30 | 3.4 | 6.55 | 6.55 | 9.53 | 9.53 | 12.70 | 15.88 | 19.05 | |||||
| 150 | 6 | 168.30 | 3.4 | 7.11 | 7.11 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | |||||
| 200 | 8 | 219.10 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.70 | 12.70 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| 250 | 10 | 273.00 | 4.19 | 6.35 | 7.80 | 9.27 | 9.27 | 12.70 | 12.70 | 15.09 | 18.26 | 21.44 | 25.40 | 18.58 | 25.40 |
| 300 | 12 | 323.80 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.70 | 17.48 | 21.44 | 25.40 | 28.58 | 33.32 | 25.40 |
| 350 | 14 | 355.60 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.70 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | |
| 400 | 16 | 406.40 | 6.35 | 7.92 | 9.53 | 9.53 | 12.70 | 16.66 | 12.70 | 21.44 | 26.19 | 30.96 | 36.53 | 40.19 | |
| 450 | 18 | 457.20 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.70 | 23.83 | 39.36 | 34.93 | 39.67 | 45.24 | |
| 500 | 20 | 508.00 | 6.35 | 9.53 | 12.70 | 9.53 | 15.09 | 20.62 | 12.70 | 26.19 | 32.54 | 38.10 | 44.45 | 50.01 | |
| 550 | 22 | 558.80 | 6.35 | 9.53 | 12.70 | 9.53 | 22.23 | 12.70 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | ||
| 600 | 24 | 609.60 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.70 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | |
| 650 | 26 | 660.40 | 7.92 | 12.70 | 9.53 | 12.70 | |||||||||
| 700 | 28 | 711.20 | 7.92 | 12.70 | 15.88 | 9.53 | 12.70 | ||||||||
| 750 | 30 | 762.00 | 7.92 | 12.70 | 15.88 | 9.53 | 12.70 | ||||||||
| 800 | 32 | 812.80 | 7.92 | 12.70 | 15.88 | 9.53 | 17.48 | 12.70 | |||||||
| 850 | 34 | 863.60 | 7.92 | 12.70 | 15.88 | 9.53 | 17.48 | 12.70 | |||||||
| 900 | 36 | 914.40 | 7.92 | 12.70 | 15.88 | 9.53 | 19.05 | 12.70 | |||||||
APPLICATION

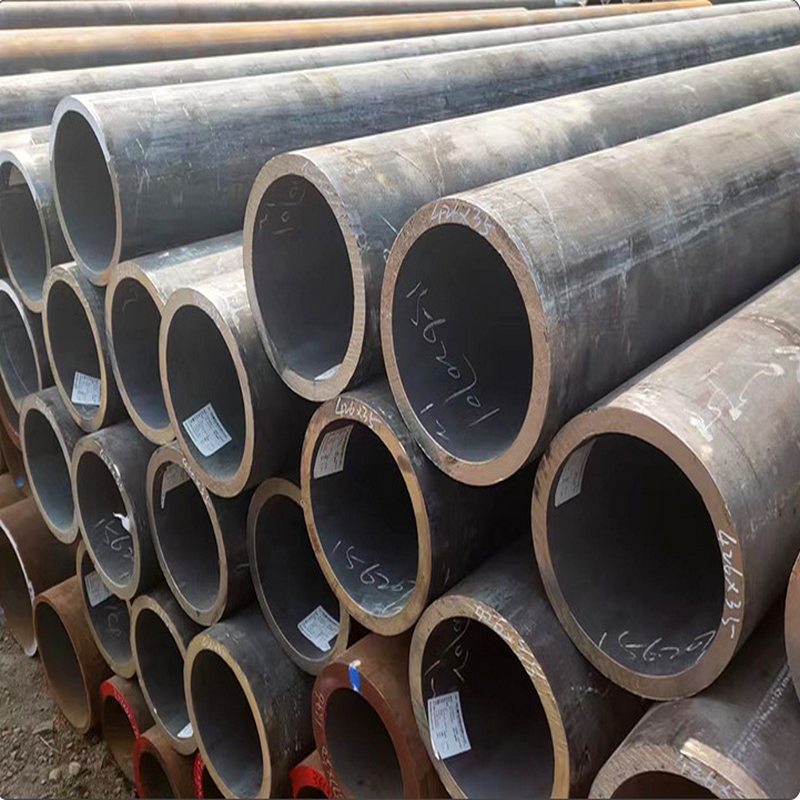

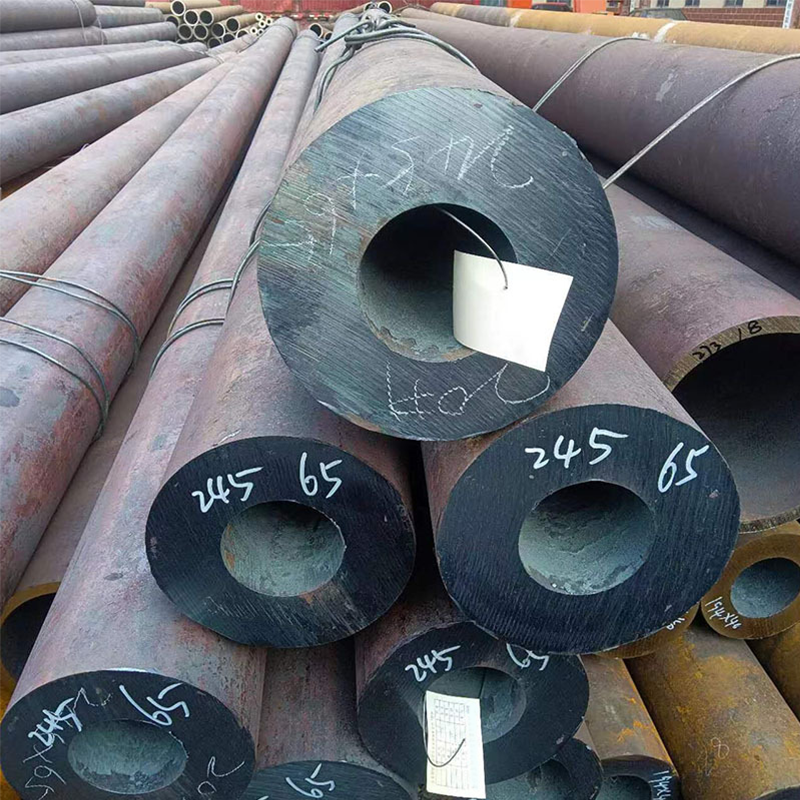

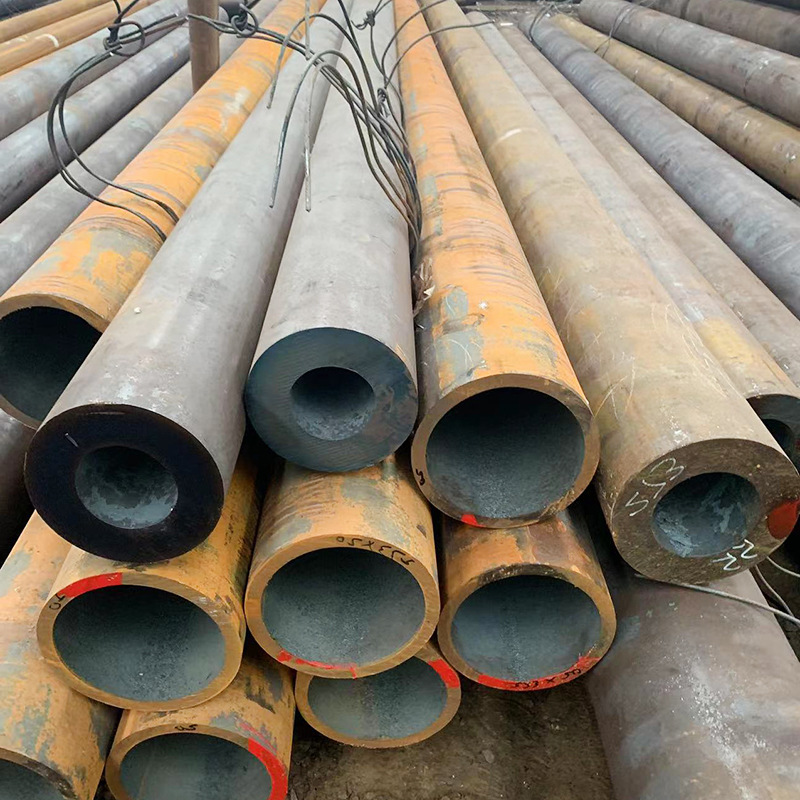

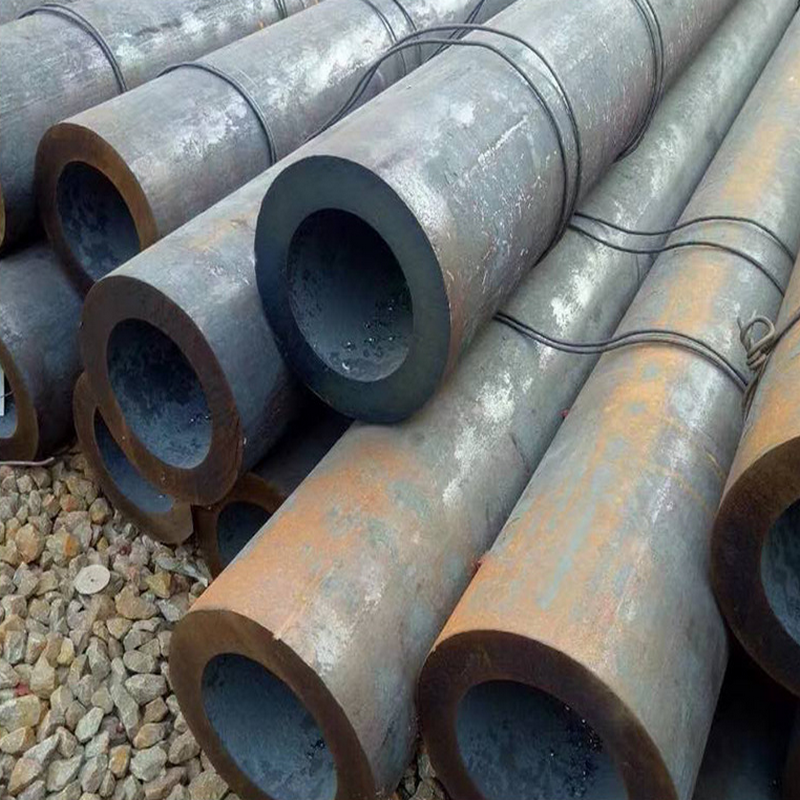

The Thick Wall Carbon Steel Pipe has the characteristics of high strength, corrosion resistance, high temperature and pressure resistance, and is suitable for various high pressure, high temperature, low temperature, strong corrosion and other occasions. It is widely used in the petroleum industry, chemical industry, power, aviation, water conservancy and other fields.
