NORMAL SIZE

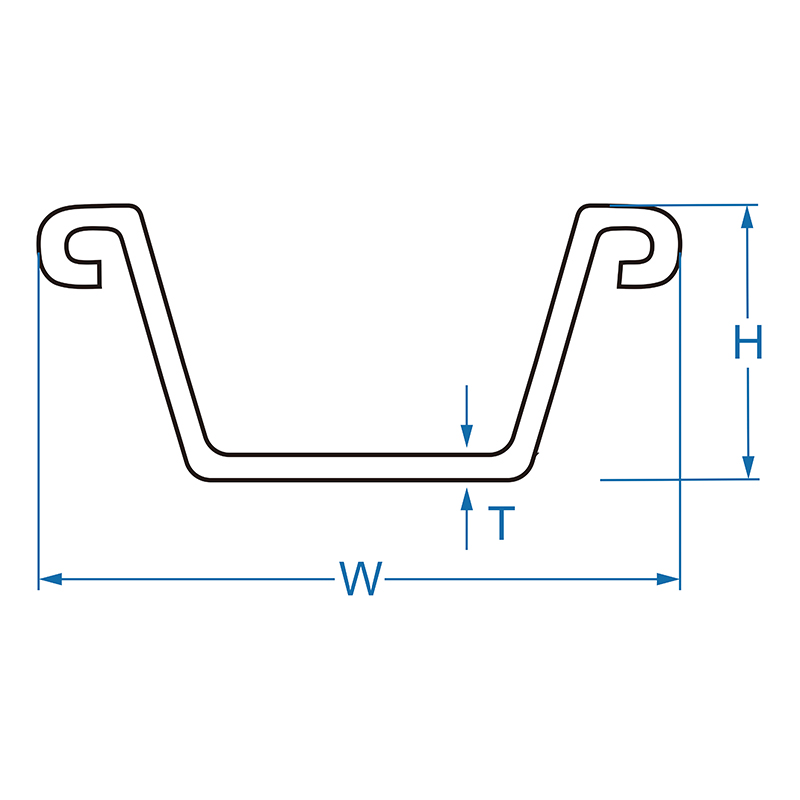

| Type | Width mm | Height mm | Thickness mm | Sectional area Cm2/m | Weight per pile Kg/m | Weight per wall Kg/ m2 | Moment of Inertia Cm4/m | Modulus of section Cm3/m |
| WRU7 | 750 | 320 | 5 | 71.3 | 42 | 56 | 10725 | 670 |
| WRU8 | 750 | 320 | 6 | 86.7 | 51 | 68.1 | 13169 | 823 |
| WRU9 | 750 | 320 | 7 | 101.4 | 59.7 | 79.6 | 15251 | 953 |
| WRU10-450 | 450 | 360 | 8 | 148.6 | 52.5 | 116.7 | 18268 | 1015 |
| WRU11-450 | 450 | 360 | 9 | 165.9 | 58.6 | 130.2 | 20375 | 1132 |
| WRU12-450 | 450 | 360 | 10 | 182.9 | 64.7 | 143.8 | 22444 | 1247 |
| WRU11-575 | 575 | 360 | 8 | 133.8 | 60.4 | 105.1 | 19685 | 1094 |
| WRU12-575 | 575 | 360 | 9 | 149.5 | 67.5 | 117.4 | 21973 | 1221 |
| WRU13-575 | 575 | 360 | 10 | 165 | 74.5 | 129.5 | 24224 | 1346 |
| WRU11-600 | 600 | 360 | 8 | 131.4 | 61.9 | 103.2 | 19897 | 1105 |
| WRU12-600 | 600 | 360 | 9 | 147.3 | 69.5 | 115.8 | 22213 | 1234 |
| WRU13-600 | 600 | 360 | 10 | 162.4 | 76.5 | 127.5 | 24491 | 1361 |
| WRU18- 600 | 600 | 350 | 12 | 220.3 | 103.8 | 172.9 | 32797 | 1874 |
| WRU20- 600 | 600 | 350 | 13 | 238.5 | 112.3 | 187.2 | 35224 | 2013 |
| WRU16 | 650 | 480 | 8 | 138.5 | 71.3 | 109.6 | 39864 | 1661 |
| WRU 18 | 650 | 480 | 9 | 156.1 | 79.5 | 122.3 | 44521 | 1855 |
| WRU20 | 650 | 540 | 8 | 153.7 | 78.1 | 120.2 | 56002 | 2074 |
| WRU23 | 650 | 540 | 9 | 169.4 | 87.3 | 133 | 61084 | 2318 |
| WRU26 | 650 | 540 | 10 | 187.4 | 96.2 | 146.9 | 69093 | 2559 |
| WRU30-700 | 700 | 558 | 11 | 217.1 | 119.3 | 170.5 | 83139 | 2980 |
| WRU32-700 | 700 | 560 | 12 | 236.2 | 129.8 | 185.4 | 90880 | 3246 |
| WRU35-700 | 700 | 562 | 13 | 255.1 | 140.2 | 200.3 | 98652 | 3511 |
| WRU36-700 | 700 | 558 | 14 | 284.3 | 156.2 | 223.2 | 102145 | 3661 |
| WRU39-700 | 700 | 560 | 15 | 303.8 | 166.9 | 238.5 | 109655 | 3916 |
| WRU41-700 | 700 | 562 | 16 | 323.1 | 177.6 | 253.7 | 117194 | 4170 |
| WRU 32 | 750 | 598 | 11 | 215.9 | 127.1 | 169.5 | 97362 | 3265 |
| WRU 35 | 750 | 600 | 12 | 234.9 | 138.3 | 184.4 | 106416 | 3547 |
| WRU 38 | 750 | 602 | 13 | 253.7 | 149.4 | 199.2 | 115505 | 3837 |
| WRU 40 | 750 | 598 | 14 | 282.2 | 166.1 | 221.5 | 119918 | 4011 |
| WRU 43 | 750 | 600 | 15 | 301.5 | 177.5 | 236.7 | 128724 | 4291 |
| WRU 45 | 750 | 602 | 16 | 320.8 | 188.9 | 251.8 | 137561 | 4570 |
APPLICATION
Applied in automobiles, railway vehicles, shelves, highway guardrails, building steel structures, containers, transmission towers, cable tray, agricultural machinery, furniture, vegetable greenhouses, pipe supports, water retaining and soil retaining maintenance walls and other fields.
