Galvanized a36 carbon steel flat bars products 5160 spring steel Thickness 3.0-60.0mm 201 202 304 316 stainless steel flat bar

< >

Sales of Flat Steel 100*6 40*4 30*3 Hot Rlled Galvanized Flat Steel 50*6 Export Flat Steel

Galvanized flat bar, Galvanized flat metal, Galvanized steel strip, Galvanized steel plate, Galvanized steel sheet, Galvanized rectangular bar, Galvanized rectangular steel, Galvanized sheet metal

Details description

NORMAL SIZE

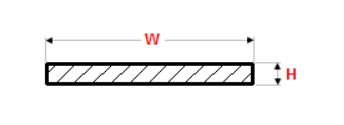

FLAT	Weight	Surface area	FLAT	Weight	Surface area	FLAT	Weight	Surface area
W x H	kg/m	m2/m	W x H	kg/m	m2/m	W x H	kg/m	m2/m
10 x 3	0.24	0.026	70 x 20	11.2	0.18	160 x 5	6.4	0.33
10 x 4	0.32	0.028	70 x 25	14	0.19	160 x 6	7.68	0.332
12 x 3	0.288	0.03	70 x 30	16.8	0.2	160 x 8	10.2	0.336
12 x 4	0.384	0.032	70 x 40	22.4	0.22	160 x 10	12.8	0.34
14 x 3	0.336	0.034	70 x 50	28	0.24	160 x 12	15.4	0.344
14 x 4	0.448	0.036	75 x 3	1.8	0.156	160 x 15	19.2	0.35
14 x 5	0.56	0.038	75 x 4	2.4	0.158	160 x 20	25.6	0.36
16 x 3	0.384	0.038	75 x 5	3	0.16	160 x 25	32	0.37
16 x 4	0.512	0.04	75 x 6	3.6	0.162	160 x 30	38.4	0.38
16 x 5	0.64	0.042	75 x 8	4.8	0.166	165 x 5	6.6	0.34
18 x 3	0.432	0.042	75 x 10	6	0.17	165 x 6	7.92	0.342
18 x 4	0.576	0.044	75 x 12	7.2	0.174	165 x 8	10.6	0.346
18 x 5	0.72	0.046	75 x 15	9	0.18	165 x 10	13.2	0.35
20 x 3	0.48	0.046	75 x 20	12	0.19	165 x 12	15.8	0.354
20 x 4	0.64	0.048	75 x 25	15	0.2	165 x 15	19.8	0.36
20 x 5	0.8	0.05	75 x 30	18	0.21	165 x 20	26.4	0.37
20 x 6	0.96	0.052	75 x 40	24	0.23	165 x 25	33	0.38
20 x 8	1.28	0.056	75 x 50	30	0.25	165 x 30	39.6	0.39
20 x 10	1.6	0.06	80 x 3	1.92	0.166	170 x 5	6.8	0.35
20 x 12	1.92	0.064	80 x 4	2.56	0.168	170 x 6	8.16	0.352
20 x 15	2.4	0.07	80 x 5	3.2	0.17	170 x 8	10.9	0.356
25 x 3	0.6	0.056	80 x 6	3.84	0.172	170 x 10	13.6	0.36
25 x 4	0.8	0.058	80 x 8	5.12	0.176	170 x 12	16.3	0.364
25 x 5	1	0.06	80 x 10	6.4	0.18	170 x 15	20.4	0.37
25 x 6	1.2	0.062	80 x 12	7.68	0.184	170 x 20	27.2	0.38
25 x 8	1.6	0.066	80 x 15	9.6	0.19	180 x 5	7.2	0.37
25 x 10	2	0.07	80 x 20	12.8	0.2	180 x 6	8.64	0.372
25 x 12	2.4	0.074	80 x 25	16	0.21	180 x 8	11.5	0.376
25 x 15	3	0.08	80 x 30	19.2	0.22	180 x 10	14.4	0.38
30 x 3	0.72	0.066	80 x 40	25.6	0.24	180 x 12	17.3	0.384
30 x 4	0.96	0.068	80 x 50	32	0.26	180 x 15	21.6	0.39
30 x 5	1.2	0.07	90 x 3	2.16	0.186	180 x 20	28.8	0.4
30 x 6	1.44	0.072	90 x 4	2.88	0.188	180 x 25	36	0.41
30 x 8	1.92	0.076	90 x 5	3.6	0.19	180 x 30	43.2	0.42
30 x 10	2.4	0.08	90 x 6	4.32	0.192	180 x 40	57.6	0.44
30 x 12	2.88	0.084	90 x 8	5.76	0.196	180 x 50	72	0.46
30 x 15	3.6	0.09	90 x 10	7.2	0.2	200 x 5	8	0.41
30 x 20	4.8	0.1	90 x 12	8.64	0.204	200 x 6	9.6	0.412
35 x 3	0.84	0.076	90 x 15	10.8	0.21	200 x 8	12.8	0.416
35 x 4	1.12	0.078	90 x 20	14.4	0.22	200 x 10	16	0.42
35 x 5	1.4	0.08	90 x 25	18	0.23	200 x 12	19.2	0.424
35 x 6	1.68	0.082	90 x 30	21.6	0.24	200 x 15	24	0.43
35 x 8	2.24	0.086	90 x 40	28.8	0.26	200 x 20	32	0.44
35 x 10	2.8	0.09	90 x 50	36	0.28	200 x 25	40	0.45
35 x 12	3.36	0.094	100 x 3	2.4	0.206	200 x 30	48	0.46
35 x 15	4.2	0.1	100 x 4	3.2	0.208	200 x 40	64	0.48
35 x 20	5.6	0.11	100 x 5	4	0.21	200 x 50	80	0.5
35 x 25	7	0.12	100 x 6	4.8	0.212	220 x 6	10.6	0.452
40 x 3	0.96	0.086	100 x 8	6.4	0.216	220 x 8	14.1	0.456
40 x 4	1.28	0.088	100 x 10	8	0.22	220 x 10	17.6	0.46
40 x 5	1.6	0.09	100 x 12	9.6	0.224	220 x 12	21.1	0.464
40 x 6	1.92	0.092	100 x 15	12	0.23	220 x 15	26.4	0.47
40 x 8	2.56	0.096	100 x 20	16	0.24	220 x 20	35.2	0.48
40 x 10	3.2	0.1	100 x 25	20	0.25	220 x 25	44	0.49
40 x 12	3.84	0.104	100 x 30	24	0.26	220 x 30	52.8	0.5
40 x 15	4.8	0.11	100 x 40	32	0.28	230 x 6	11	0.472
40 x 20	6.4	0.12	100 x 50	40	0.3	230 x 8	14.7	0.476
40 x 25	8	0.13	110 x 3	2.64	0.226	230 x 10	18.4	0.48
45 x 3	1.08	0.096	110 x 4	3.52	0.228	230 x 12	22.1	0.484
45 x 4	1.44	0.098	110 x 5	4.4	0.23	230 x 15	27.6	0.49
45 x 5	1.8	0.1	110 x 6	5.28	0.232	230 x 20	36.8	0.5
45 x 6	2.16	0.102	110 x 8	7.04	0.236	230 x 25	46	0.51
45 x 8	2.88	0.106	110 x 10	8.8	0.24	230 x 30	55.2	0.52
45 x 10	3.6	0.11	110 x 12	10.6	0.244	240 x 10	19.2	0.5
45 x 12	4.32	0.114	110 x 15	13.2	0.25	240 x 12	23	0.504
45 x 15	5.4	0.12	110 x 20	17.6	0.26	240 x 15	28.8	0.51
45 x 20	7.2	0.13	110 x 25	22	0.27	240 x 20	38.4	0.52
45 x 25	9	0.14	110 x 30	26.4	0.28	250 x 5	10	0.51
50 x 3	1.2	0.106	110 x 40	35.2	0.3	250 x 6	12	0.512
50 x 4	1.6	0.108	110 x 50	44	0.32	250 x 8	16	0.516
50 x 5	2	0.11	120 x 3	2.88	0.246	250 x 10	20	0.52
50 x 6	2.4	0.112	120 x 4	3.84	0.248	250 x 12	24	0.524
50 x 8	3.2	0.116	120 x 5	4.8	0.25	250 x 15	30	0.53
50 x 10	4	0.12	120 x 6	5.76	0.252	250 x 20	40	0.54
50 x 12	4.8	0.124	120 x 8	7.68	0.256	250 x 25	50	0.55
50 x 15	6	0.13	120 x 10	9.6	0.26	250 x 30	60	0.56
50 x 20	8	0.14	120 x 12	11.5	0.264	250 x 40	80	0.58
50 x 25	10	0.15	120 x 15	14.4	0.27	280 x 6	13.4	0.572
50 x 30	12	0.16	120 x 20	19.2	0.28	280 x 8	17.9	0.576
50 x 40	16	0.18	120 x 25	24	0.29	280 x 10	22.4	0.58
55 x 3	1.32	0.116	120 x 30	28.8	0.3	280 x 12	26.9	0.584
55 x 4	1.76	0.118	120 x 40	38.4	0.32	280 x 15	33.6	0.59
55 x 5	2.2	0.12	120 x 50	48	0.34	280 x 20	44.8	0.6
55 x 6	2.64	0.122	130 x 3	3.12	0.266	280 x 25	56	0.61
55 x 8	3.52	0.126	130 x 4	4.16	0.268	280 x 30	67.2	0.62
55 x 10	4.4	0.13	130 x 5	5.2	0.27	300 x 5	12	0.61
55 x 12	5.28	0.134	130 x 6	6.24	0.272	300 x 6	14.4	0.612
55 x 15	6.6	0.14	130 x 8	8.32	0.276	300 x 8	19.2	0.616
55 x 20	8.8	0.15	130 x 10	10.4	0.28	300 x 10	24	0.62
55 x 25	11	0.16	130 x 12	12.5	0.284	300 x 12	28.8	0.624
55 x 30	13.2	0.17	130 x 15	15.6	0.29	300 x 15	36	0.63
60 x 3	1.44	0.126	130 x 20	20.8	0.3	300 x 20	48	0.64
60 x 4	1.92	0.128	130 x 25	26	0.31	300 x 25	60	0.65
60 x 5	2.4	0.13	130 x 30	31.2	0.32	300 x 30	72	0.66
60 x 6	2.88	0.132	130 x 40	41.6	0.34	300 x 40	96	0.68
60 x 8	3.84	0.136	130 x 50	52	0.36	300 x 50	120	0.7
60 x 10	4.8	0.14	140 x 3	3.36	0.286	350 x 6	16.8	0.712
60 x 12	5.76	0.144	140 x 4	4.48	0.288	350 x 8	22.4	0.716
60 x 15	7.2	0.15	140 x 5	5.6	0.29	350 x 10	28	0.72
60 x 20	9.6	0.16	140 x 6	6.72	0.292	350 x 12	33.6	0.724
60 x 25	12	0.17	140 x 8	8.96	0.296	350 x 15	42	0.73
60 x 30	14.4	0.18	140 x 10	11.2	0.3	350 x 20	56	0.74
60 x 40	19.2	0.2	140 x 12	13.4	0.304	350 x 25	70	0.75
65 x 3	1.56	0.136	140 x 15	16.8	0.31	350 x 30	84	0.76
65 x 4	2.08	0.138	140 x 20	22.4	0.32	400 x 6	19.2	0.812
65 x 5	2.6	0.14	140 x 25	28	0.33	400 x 8	25.6	0.816
65 x 6	3.12	0.142	140 x 30	33.6	0.34	400 x 10	32	0.82
65 x 8	4.16	0.146	140 x 40	44.8	0.36	400 x 12	38.4	0.824
65 x 10	5.2	0.15	140 x 50	56	0.38	400 x 15	48	0.83
65 x 12	6.24	0.154	150 x 3	3.6	0.306	400 x 20	64	0.84
65 x 15	7.8	0.16	150 x 4	4.8	0.308	400 x 25	80	0.85
65 x 20	10.4	0.17	150 x 5	6	0.31	400 x 30	96	0.86
65 x 25	13	0.18	150 x 6	7.2	0.312	400 x 40	128	0.88
65 x 30	15.6	0.19	150 x 8	9.6	0.316	400 x 50	160	0.9
65 x 40	20.8	0.21	150 x 10	12	0.32	500 x 8	32	1.02
70 x 3	1.68	0.146	150 x 12	14.4	0.324	500 x 10	40	1.02
70 x 4	2.24	0.148	150 x 15	18	0.33	500 x 12	48	1.02
70 x 5	2.8	0.15	150 x 20	24	0.34	500 x 15	60	1.03
70 x 6	3.36	0.152	150 x 25	30	0.35	500 x 20	80	1.04
70 x 8	4.48	0.156	150 x 30	36	0.36	500 x 25	100	1.05
70 x 10	5.6	0.16	150 x 40	48	0.38	500 x 30	120	1.06
70 x 12	6.72	0.164	150 x 50	60	0.4	500 x 40	160	1.08
70 x 15	8.4	0.17				500 x 50	200	1.1

APPLICATION

Flat bar is a basic of building support materials. They are generally used for support braces, ladder hangers, gate latches, duct work, overhead doors, heaters and bracing.
