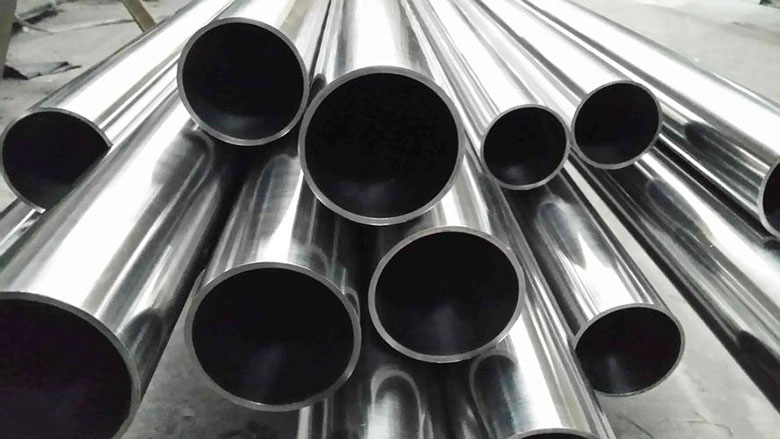

ASTM A 312 317L Stainless Steel Tubes
ASTM A 312 317L stainless steel pipe is a high-quality stainless steel pipe designed for applications requiring excellent corrosion resistance and high temperature performance.
Product specifications: outer diameter 6mm~762mm, wall thickness 1mm~140mm. Length 4m~12m, customizable.
Processing methods:
Cutting: mechanical cutting or flame cutting.
Cold processing: such as cold drawing, cold rolling, cold bending, etc.
Hot processing: such as hot rolling, hot extrusion, etc., but the processing temperature needs to be controlled.
Welding: has good welding performance and can use common welding methods.
Delivery status: can be after heat treatment or pickling, depending on customer needs.
Chemical Composition Of ASTM A312 TP 317L Stainless Steel Seamless Pipe | |||||||
Cr | Ni | Mo | C | Si | Mn | P | S |
18.0-20.0% | 11.0-15.0% | 3.0-4.0% | ≤0.08% | ≤1.00% | ≤2.00% | ≤0.035% | ≤0.030% |
Mechanical Properties Of ASTM A312 TP 317L Stainless Steel Seamless Pipe
Mechanical Properties | |
Tension strength | 515-825 MPa |
Yield Strength | 205-515 MPa |
Hardness | 180-210 HB |
