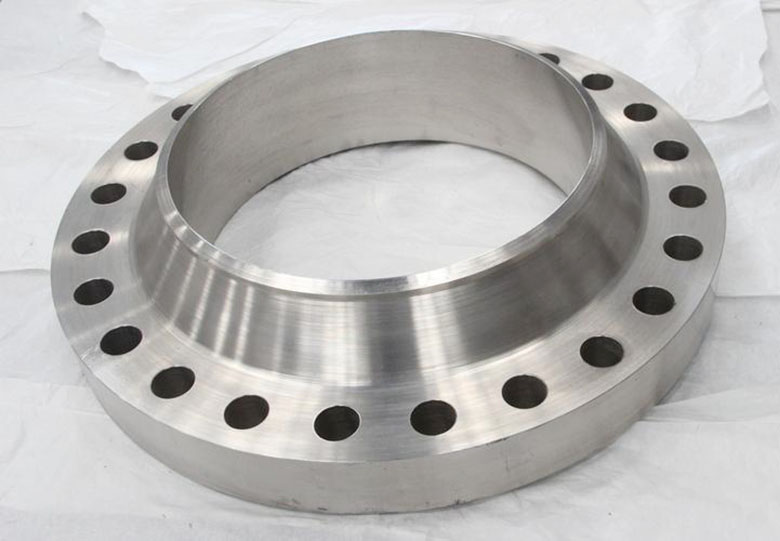

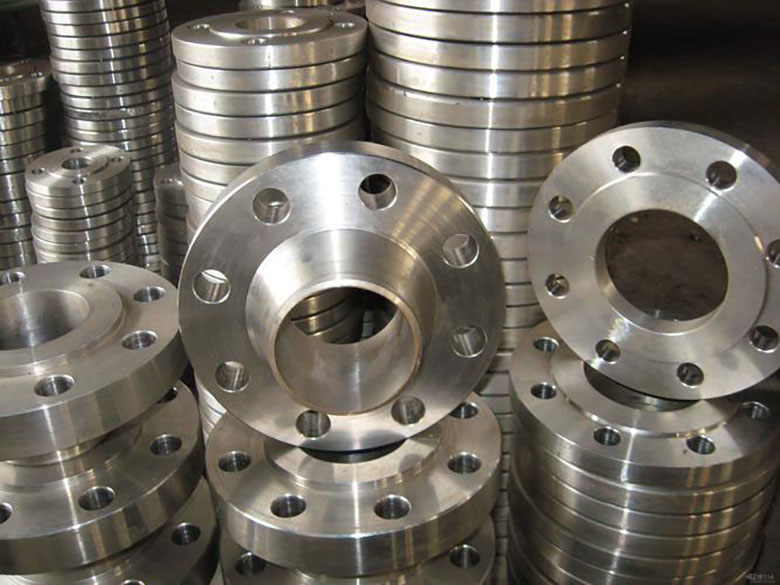

Stainless steel 316 flange
Stainless steel 316 flange is a commonly used mechanical shaft connector, made of 316 stainless steel.
316 stainless steel is an austenitic stainless steel. Due to the addition of Mo element, its corrosion resistance and high temperature strength are greatly improved. The high temperature resistance can reach 1200-1300 degrees and can be used under harsh conditions. 316 stainless steel flange is often used for pipeline connection. It has excellent corrosion resistance and high temperature strength and is suitable for various environments and usage scenarios.
A182 GR F316 Material Specification Sheet
Specifications | ASTM A182/ ASME SA182 |
Grade | F316 |
Size Ranges | From 1/2 inch (i.e. 15 NB) upto 48 inch (i.e. 1200NB) |
Standards | ASME | BS | DIN | ANSI | GOST | EN Flange |
JIS Standards | 5 K, 10K, 16K, 20 K, 30K, 40K, 63 K |
Pressure Classes | Cl 150, Class 300, Cl. 400, 600, Class 900, Cl 1500 and 2500 |
EN Standard | 6Bar, 10 Bar, 16Bar, 25 Bar, 40Bar |
F316 Grade Blind Flange Composition Table
C | Si | Mn | P | S | Mo | Cr | Ni | N |
0.08 max | 0.75 max | 2 max | 0.045 max | 0.030 max | 2 – 3 | 16 – 18 | 10 – 14 | 0.1 max |
