What is the common thickness of pattern plate?

What is pattern plate?

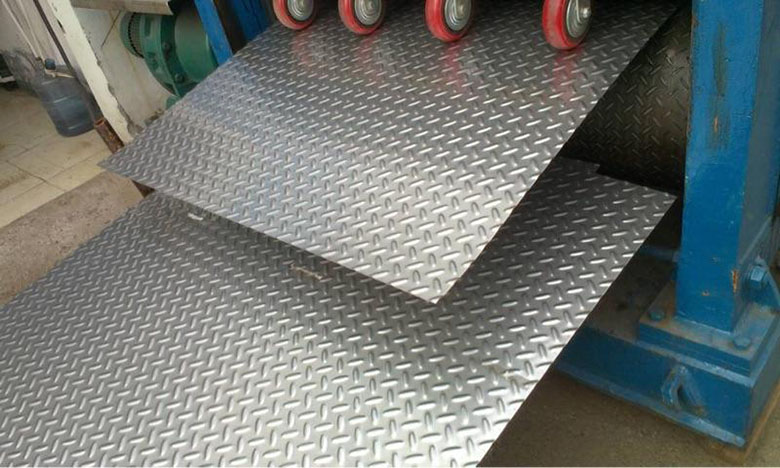

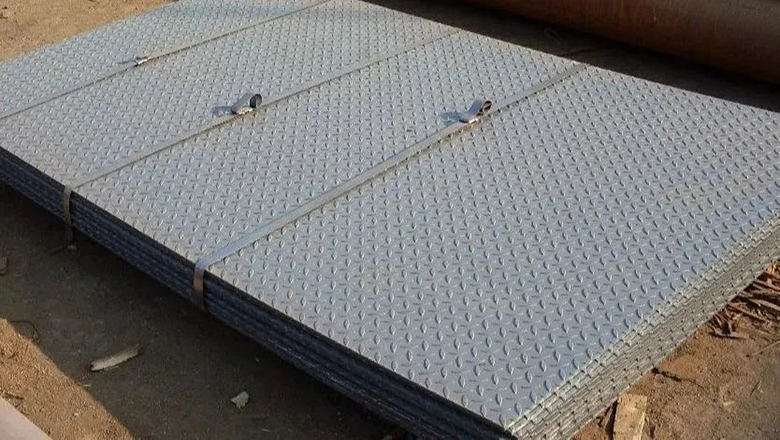

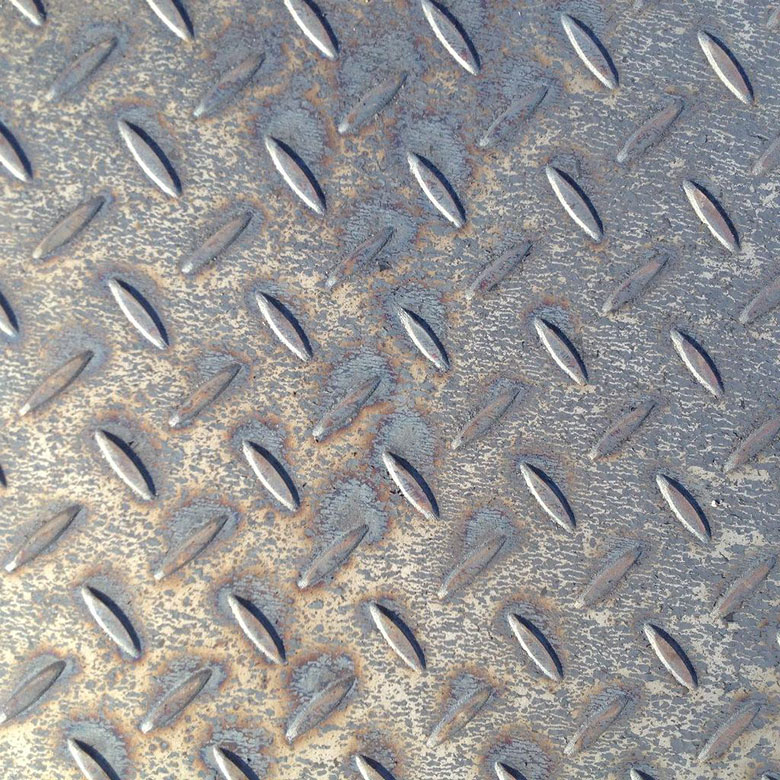

Pattern plate is a steel plate with a special pattern. The pattern shapes are generally round, lentil-shaped and diamond-shaped. There are also some oblate and T-shaped ones. The lentil-shaped one is the most common on the market. Generally speaking, users do not have high requirements for the mechanical properties and mechanical properties of pattern boards. Therefore, the quality of pattern boards is mainly reflected in the pattern formation rate, pattern height, and pattern height difference.

What are the commonly used thicknesses of pattern plates?

The pattern plate is made of ordinary carbon steel. The commonly used thicknesses on the market currently range from 2.0-8mm, and the common widths are 1250 and 1500mm.

Does the thickness of the pattern plate include the pattern?

Many customers don't know much about pattern plates and don't know whether the thickness of pattern plates includes the thickness of the pattern. In fact, the thickness of the pattern board does not include the thickness of the pattern.

How to measure the thickness of pattern plate?

1. You can use a ruler to measure directly. Pay attention to measuring the areas without patterns, because what you want to measure is the thickness excluding patterns.

2. Measure several times around the pattern plate.

3. Then find the average of several numbers to know the thickness of the pattern plate. Generally, the basic thickness of pattern plates is 5.75mm. Try to use a micrometer when measuring, and the measurement results will be more accurate.
