The difference between color steel profiled panels and color steel composite panels

Color steel profiled panels and color steel composite panels are two common building materials. They have some differences in form, performance and application.

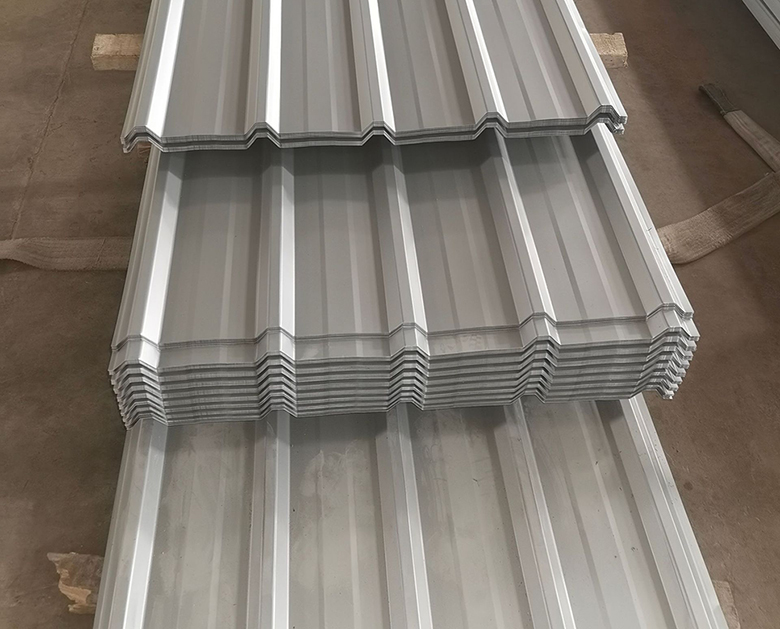

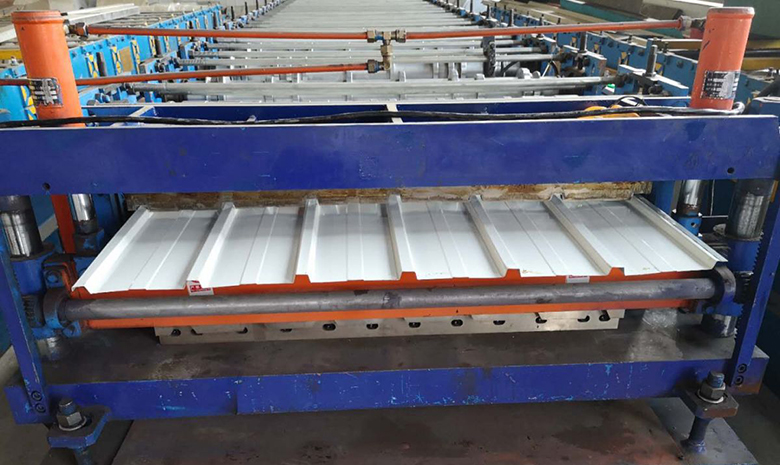

1. Color-coated steel profiles are profiled plates that are cold-bent in different shapes. It uses steel plates as the base material. After multiple processes, the steel plates are cold-bent into corrugated structures of different shapes through special profiling machines to form color steel profiled plates with a certain strength and stiffness.

Its corrugated shapes usually include tile type, trapezoidal, arc type, etc. The advantage of color steel profiled panels is that they have a certain strength and stiffness, and are suitable for roofs and walls of buildings. Its main application areas include industrial plants, commercial complexes, warehouses, exhibition halls, etc.

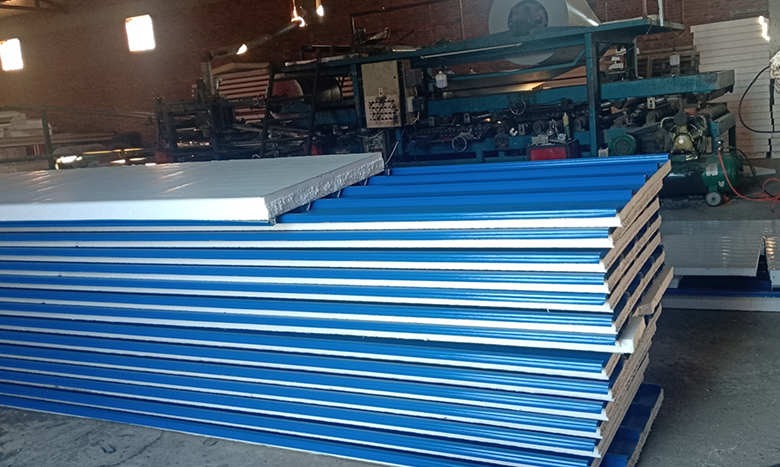

2. Color steel composite plate is a plate made of color steel plate and other materials.

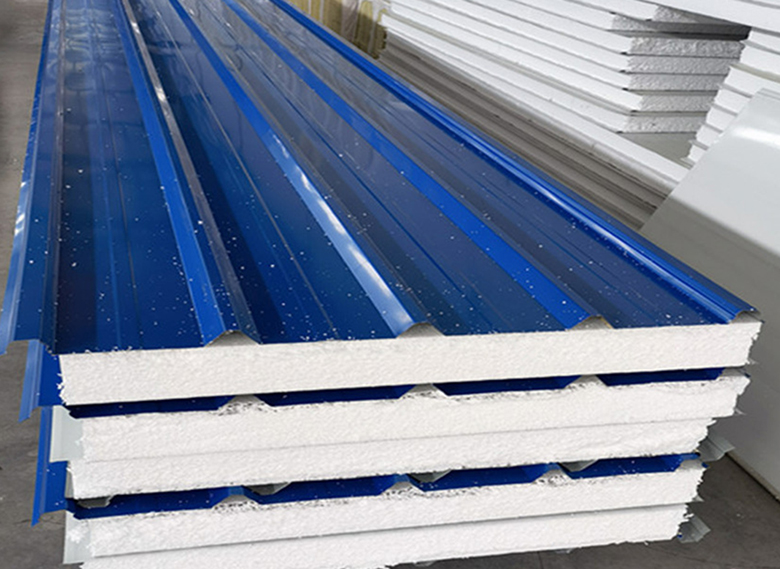

Color steel composite panels are usually composed of two layers of upper and lower steel plates and an insulation layer in the middle. A special connection method is used to fix the steel plates and the insulation layer to form a color steel composite panel with thermal insulation properties. The advantage of color steel composite panels is that they have good thermal insulation properties and are suitable for roofs, walls and partitions of buildings. Its main application areas include residential quarters, villas, office buildings, commercial buildings, etc.

3. There are also some differences in performance between color steel profiled panels and color steel composite panels.

Because the color steel profiled plate uses a single-layer steel plate and has been cold-bent, it has high strength and stiffness and can withstand a certain load and wind pressure. Due to the existence of the intermediate insulation layer, color steel composite panels have better thermal insulation performance, which can effectively reduce energy loss and heat conduction and improve the energy efficiency of the building.

4. There are also some differences in construction and maintenance between color steel profiled panels and color steel composite panels.

The construction process of color steel profiled panels is relatively simple and the installation speed is fast. However, the color steel composite panel involves the construction of insulation materials, and the process is more complicated, and the insulation layer needs to be correctly fixed and connected.

In addition, there are some differences in maintenance between color steel profiled panels and color steel composite panels. Color steel profiled panels usually only need regular cleaning, maintenance, and inspection and repair of the protective layer; while color steel composite panels require regular cleaning and maintenance. Check the condition of the insulation layer, repair and replace it promptly to ensure the long-term effectiveness of its insulation performance.
