Calculation of elbow weight

The theoretical weight calculation formula of the elbow is provided by yangtzesteel company. The calculation result data is the theoretical weight. Because the process of making the elbow is different, the molding or push forming and the material of the steel pipe are different, so the weight is somewhat different. YangtzeSteel is a professional manufacturer of pressure pipe fittings, creating the highest value for customers, and is willing to establish close cooperative relations with customers.

Calculation formula: (outer diameter - wall thickness) X wall thickness X 0.02466 X R multiple X 1.57 X nominal diameter ÷ 1000 = theoretical weight of 90 degree elbow

for example:

426*10　90°R=1.5D R1.5D*1.5

(426-10）*10*0.02466*1.5*1.57*400÷1000=96.6Kg

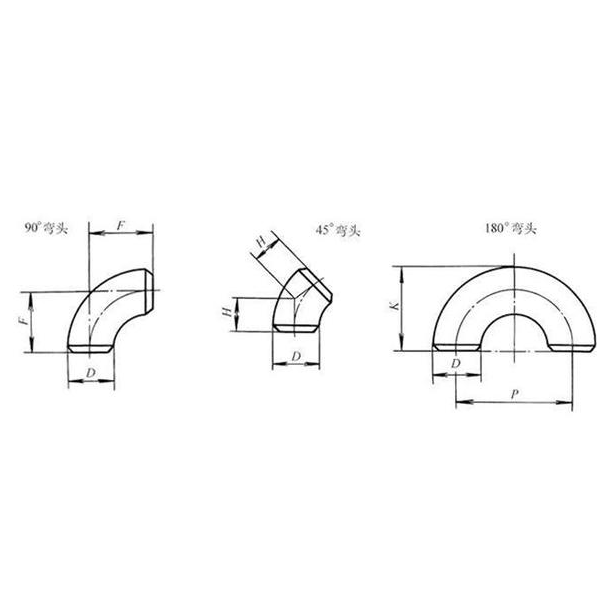

①180° elbow is calculated by 2 times of the table, 45° is calculated by 1/2;

②R=1D elbow weight is calculated according to Table 2/3;

③For the weight of the wall thickness of the non-standard elbow, the calculated average value close to it can be taken;
